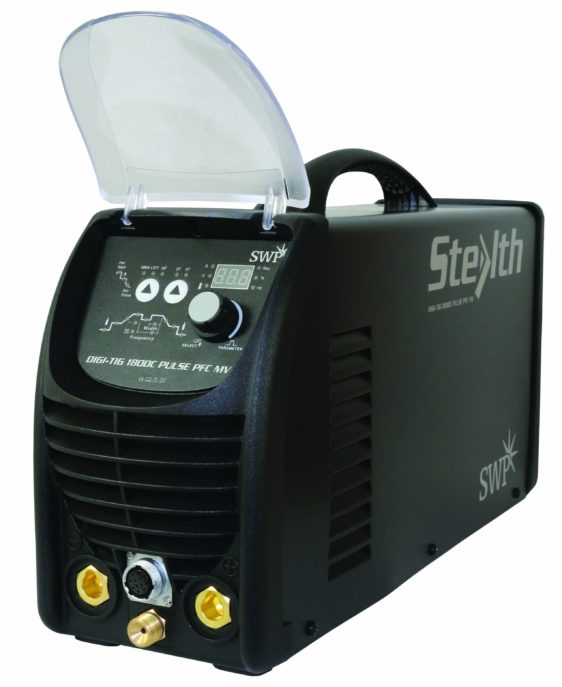

SWP Stealth 9010H Digi-TIG Welder

Description

Stealth 9010H Digi-TIG 180DC Pulse PFC MV Welder

Features

• Pulse DC TIG
• Weld 4MM Mild Steel & Stainless Steel
• Up slope
• Down Slope
• Post Gas
• Pre Gas
• Dual Voltage



Specifications – 230 volts

• Input power voltage – 110V / 230V
• Input power amps – 16A
• No load voltage (V) – 65V
• Amperage range (A) – 5A – 180A
• Rated duty cycle (40^oc 10 min) – TIG – 35% @ 180A, 60% @ 140A, 100% @ 110A
• MMA – 25% @ 180A, 60% @ 120A, 100% @ 100A
• Protection class – lP23
• Up slope/Down slope (S) – 0-10
• Pulse width range (%) – 5-95
• Post-gas time adjustment range (S) – 0-10
• Power factor – 0.99
• Overall dimensions (mm) – 465 x 146 x 278
• Weight (Kg) – 7.5
• Accessories included – TIG Torch + 3m Argon hose + Amphenol plug

SWP Stealth 9010H Digi Tig 180DC SPEC Sheet

9010H DIGI-TIG 180 DC PULSE PFC MV Manual
